FIRE DOOR
COMPONENTS

Keep Fire out.

Keep strength & precision in.

Capabilities of producing 20, 45 and 90-minute commercial fire rated door components — including stiles, rails and cores available in a variety of sizes and finishes.

The ideal choice for hospitals, schools or office buildings, Lexington’s commercial fire rated door components are made from process friendly materials and are capable of meeting even the most extreme fire-proof door requirements. As an industry leading fire door manufacturer, our fireproof door components meet or exceed WDMA and ANSI requirements.

20-MINUTE

FIRE RATED COMPONENTS

Stiles

Laminated Stile construction with Timberstand backing construction. Positive Pressure CAT A design available upon request.

Rails

Solid SCL, can be constructed for Positive Pressure Cat A design.

Core

Agrifiber Particle Board, SCL, or Wood Particle Board.

Lock Blocks

SCL if required for surface mounted hardware.

45-MINUTE

FIRE RATED COMPONENTS

FOR SINGLE DOORS

MAX SIZE 4′ X 8′

Stiles

Laminated Stile construction with all wood construction. Positive Pressure CAT A design available upon request.

Rails

SCL, can be constructed for Positive Pressure CAT A design with concealed intumescent.

Core

Agrifiber Particle Board or SCL.

Lock Blocks

SCL if required for surface mounted hardware.

45-MINUTE

FIRE RATED COMPONENTS

FOR PAIR OF DOORS MAX

SIZE 8’x8′ OR SINGLE DOORS

4’x10’ AND TRANSOM

Stiles

Laminated Stile construction with mineral backing construction. Positive Pressure CAT A design available upon request.

Rails

Solid mineral, can be constructed for Positive Pressure CAT A design with concealed intumescent.

Core

Agrifiber Particle Board or SCL.

Lock Blocks

SCL.

BONDED CORE

Application Description

Fully assembled bonded core for flush door construction.



Crossband Applied or Not

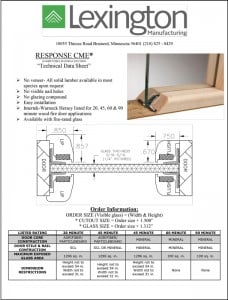

FIRE RATED KIT
WITH SOLID WOOD BEAD

FIRE RATED COMPONENTS

Application Description

90 minute Maximum size — 1296 sq inches of visible light. 60 minute, and 90 minute — 100 square inches visible light. The only solid wood glazed 90 minute light kit available in the world.

TECHNICAL DATA

Agrifiber Particle Board
20 Minute, 45 Minute, 60 Minute (APB 20/45/60)


TimberStrand® LSL

Customized
Manufacturing Solutions

Industry-Leading
Manufacturing Quality

Faster Time
To Market

PRODUCTION EXPERTISE



Core Builder
Engineered manufacturing process to maximize material utilization for custom sized core.

Panel Processing
Fully automated, yield maximizing process for efficient results.

CNC Routing
Routed bonded core panels available for pre-molded skins.

RF Gluing
Utilizing the efficiency of Radio Frequency (RF) for component manufacturing.

Laminating Cold Press
Flat laminating available for adding crossbands to fully bonded core. Customer option to receive a fully assembled bonded core with crossbands, all you need is to apply finish veneer.

Bonded Door Core
Pre assembled fire-rated door slab core available in 20 min, 45 min, and 60 min. Positive Pressure CAT A available.

CORE OPTIMIZATION.
NO WASTED PRODUCT.
NO WASTED MONEY.

QUALITY PROCESSES



Quality Management System
Fully integrated QMS for process control, lot traceability, document revision, and control of non-conforming material.

Continuous Improvement
Lexington’s culture. And not just words. Our documentation process of recording and measuring tracks continuous improvement.

Statistical Process Control (SPC)
Statistically monitored processing for machine and process repeatability.
